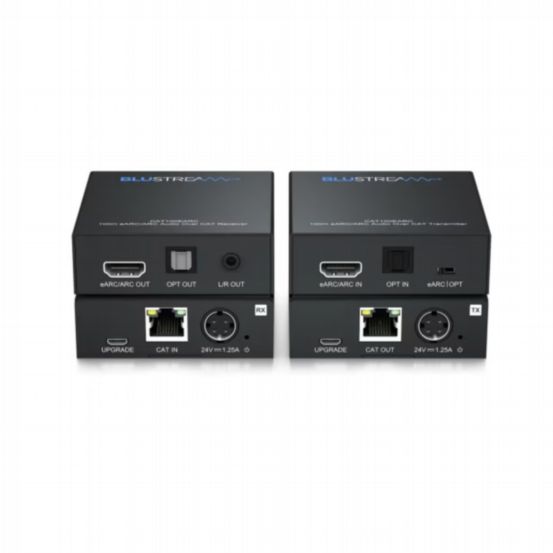

Blustream CAT100EARC eARC/ARC Over CAT Extender
BU-CAT100EARC
The CAT100EARC allows HDMI eARC/ARC or optical digital audio signals to be transmitted over a single CAT cable, providing high-quality audio distribution for residential or commercial installations. It features a built-in DAC to convert eARC/ARC or optical audio to stereo L/R output, supports CEC pass-through, and can extend signals up to 200m depending on the format.
Features & Benefits
- Extends HDMI eARC/ARC or Optical audio over a single CAT cable
- eARC/ARC distribution distances: up to 100m
- Optical audio distribution distances: up to 200m
- Built-in DAC converts HDMI eARC/ARC or optical digital to stereo L/R audio (2ch PCM only)
- Supports CEC pass-through in HDMI eARC/ARC mode
- eARC: PCM 2.0/5.1/7.1ch, Dolby Digital Plus, DTS, Dolby TrueHD, DTS-HD MA, Dolby Atmos
- ARC: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch
- Optical: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch
- Bi-directional PoC (Power over Cable) allows powering the extenders from either TX or RX
- Power Supply: 24V/1.25A DC
