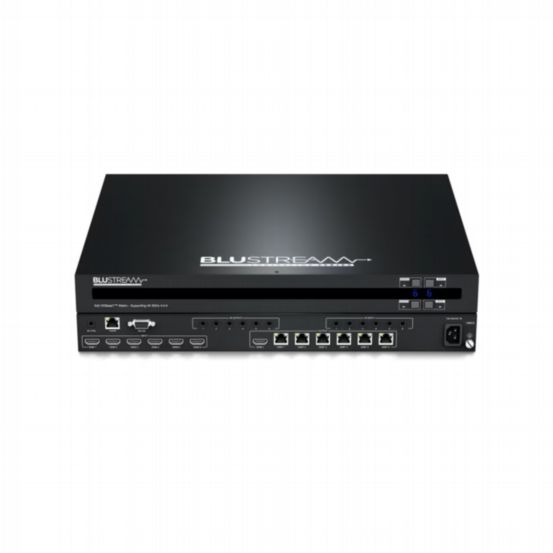

Blustream C66CS Contractor 6x6 HDBaseT CSC Matrix - 70m
BU-C66CS
The C66CS is a professional 6x6 HDMI 2.0 HDBaseT™ matrix designed for custom AV installations, delivering 4K UHD 60Hz 4:4:4 video with HDCP 2.2 compliance. Using Colour Space Conversion (CSC) technology, it provides uncompressed HDMI, bi-directional IR, and PoC over a single CAT cable up to 40m for 4K and 70m for 1080p, making it ideal for medium-range multi-zone AV distribution.
Features & Benefits
- 6 x HDMI inputs independently routable to 6 x HDBaseT™ outputs
- Output 1 features simultaneous HDMI and HDBaseT™ output
- Supports HDMI 2.0 18Gbps, HDR, and 4K UHD 60Hz 4:4:4
- Video down-conversion for displays limited to lower resolutions (4K 60Hz 4:2:0 or 1080p)
- Supports all industry standard video resolutions (VGA-WUXGA, 480i-4K)
- Supports all HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, DTS-HD Master Audio
- Web interface module for configuration and control
- Bi-directional IR support on all HDBaseT™ outputs
- Control via front panel, IR, RS-232, TCP/IP
- PoC to power compatible HDBaseT™ receivers (RX70CS recommended)
- Supplied with Blustream IR receivers and emitters
- 1U rack-mountable design with included mounting kit
- Recommended receiver for 18Gbps CSC support: RX70CS
- Video Input: 6 x HDMI Type A, 19-pin, female
- Video Output: 1 x HDMI Type A, 19-pin, female; 6 x HDBaseT™ RJ45
- RS-232 Serial Port: 1 x DB9 Serial connector
- TCP/IP Control: 1 x RJ45, female
- IR Input Ports: 7 x 3.5mm stereo jack
- IR Output Ports: 6 x 3.5mm mono jack
- Rack Mountable: 1U, rack ears included
- With feet & connections: 437mm x 384mm x 53mm
- Power Supply: Internal 100-240V AC
