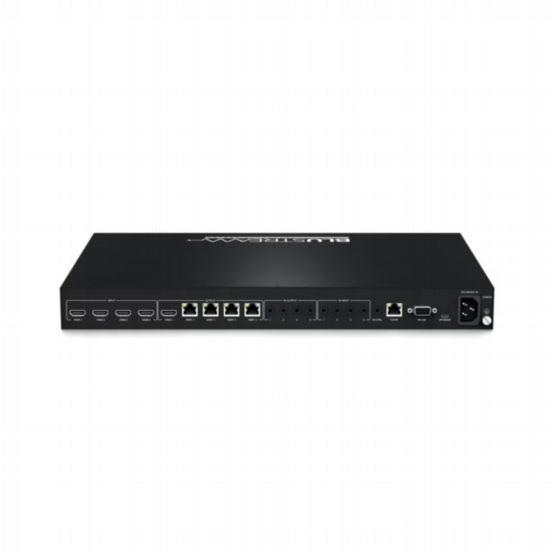

Blustream C44CS-KIT Contractor 4x4 HDBaseT CSC Matrix - 70m
BU-C44CS-KIT
The C44CS-KIT is a professional 4x4 HDMI 2.0 HDBaseT™ matrix designed for custom AV installations, delivering 4K UHD 60Hz 4:4:4 video with HDCP 2.2 compliance. Using Colour Space Conversion (CSC) technology, it provides uncompressed HDMI, bi-directional IR, and PoC over a single CAT cable up to 70m, making it ideal for multi-zone AV distribution. The kit includes 4 x RX70CSL receivers for seamless HDBaseT™ integration.
Features & Benefits
- 4 x HDMI inputs independently routable to 4 x HDBaseT™ outputs
- Output 1 features simultaneous HDMI and HDBaseT™ output
- Supports HDMI 2.0 18Gbps, HDR, and 4K UHD 60Hz 4:4:4
- Video down-conversion for displays limited to lower resolutions (4K 60Hz 4:2:0 or 1080p)
- Supports HDMI 1080p up to 70m, 4K 60Hz 4:4:4 up to 40m
- Supports all industry standard video resolutions (VGA-WUXGA, 480i-4K)
- Supports all HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, DTS-HD Master Audio
- Web interface module for configuration and control
- Bi-directional IR support on all HDBaseT™ outputs
- Control via front panel, iOS/Android app, IR, RS-232, TCP/IP
- 12V PoC to power compatible HDBaseT™ receivers
- Supplied with Blustream IR receivers and emitters
- 1U rack-mountable design with included mounting kit
- Power Supply: Internal 100-240V AC
- HDBaseT Power Output: 12V DC 0.8A per port
