Blustream

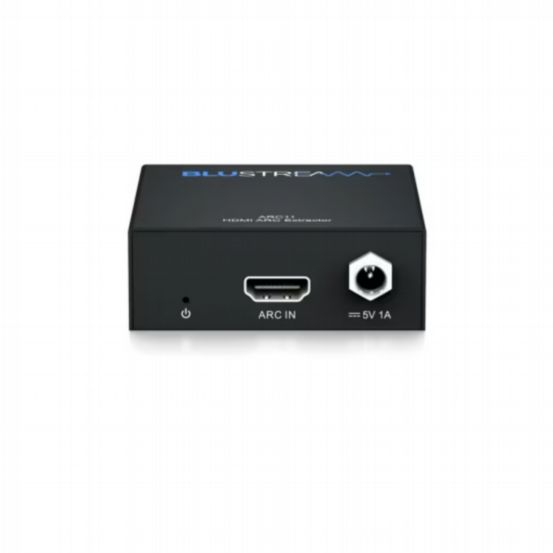

Blustream ARC11 ARC Audio Breakout
BU-ARC11
The ARC11 is designed to extract audio from the HDMI ARC (Audio Return Channel) of a display, providing convenient outputs for multi-room audio systems. It supports both analogue stereo and optical digital audio, including multi-channel formats, making it ideal for integrating TV audio into external audio systems.
Features & Benefits
- Extracts audio from HDMI ARC signals
- Analogue audio breakout: 2ch PCM audio (when source audio is 2ch PCM)
- Optical audio breakout supports multi-channel and 2ch audio formats
- Supports sample rates up to 192kHz at 24-bit depth
- Audio Input: 1 x HDMI Type A, 19-pin, female
- Dimensions (W x H x D): 70mm x 25mm x 73mm
- Power Supply: 5V/1A DC via USB
