Artison LCRDM In-Wall Kit

Artison

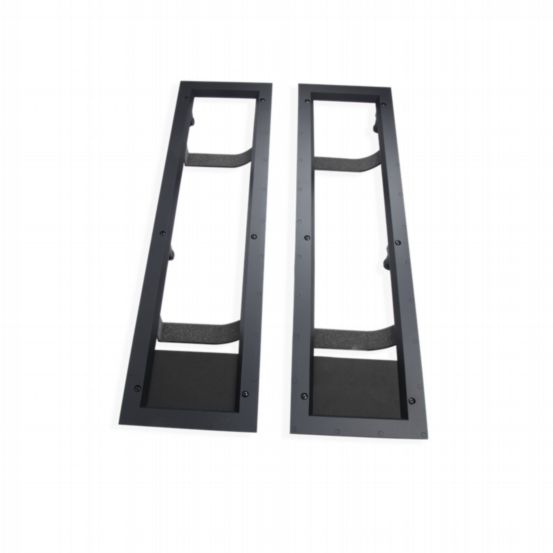

Artison LCRDM In-Wall Kit

ART-LCRDM-IW-KIT

The Artison LCRDM In-Wall Kit allows any Artison LCRDM MK2 side-mount model to be seamlessly installed within the wall for a clean, integrated finish. Designed for use with OLED projection screens and other display applications, it eliminates the need for a separate in-wall speaker below the display. Once installed, the magnetic, paintable grille conceals the speaker completely, blending effortlessly into the surrounding décor. Built from durable plastic and steel, the kit ensures secure mounting and professional-grade aesthetics for high-performance installations.

Features & Benefits

  • Enables Artison LCRDM MK2 side-mount speakers to be mounted in-wall
  • Ideal for OLED projection screens and modern video applications
  • Eliminates the need for a separate in-wall speaker beneath the display
  • Magnetic grille conceals the speaker for a sleek, integrated appearance
  • Paintable grille allows custom colour matching to any wall finish
  • Constructed from durable plastic and steel for long-lasting reliability
  • Provides a clean, professional installation with minimal wall projection
  • Cut-out dimensions: 7.6" W (193mm) x 31.1" H (790mm)
  • Bezel dimensions: 9.29" W (235.9mm) x 32.81" H (833.4mm) x 2.91" D (74mm)
  • Mounting flange width: 0.5" (12.7mm)
  • Finished height above drywall: 0.1" (2.54mm)
  • Bezel width: 0.1" (2.54mm)
