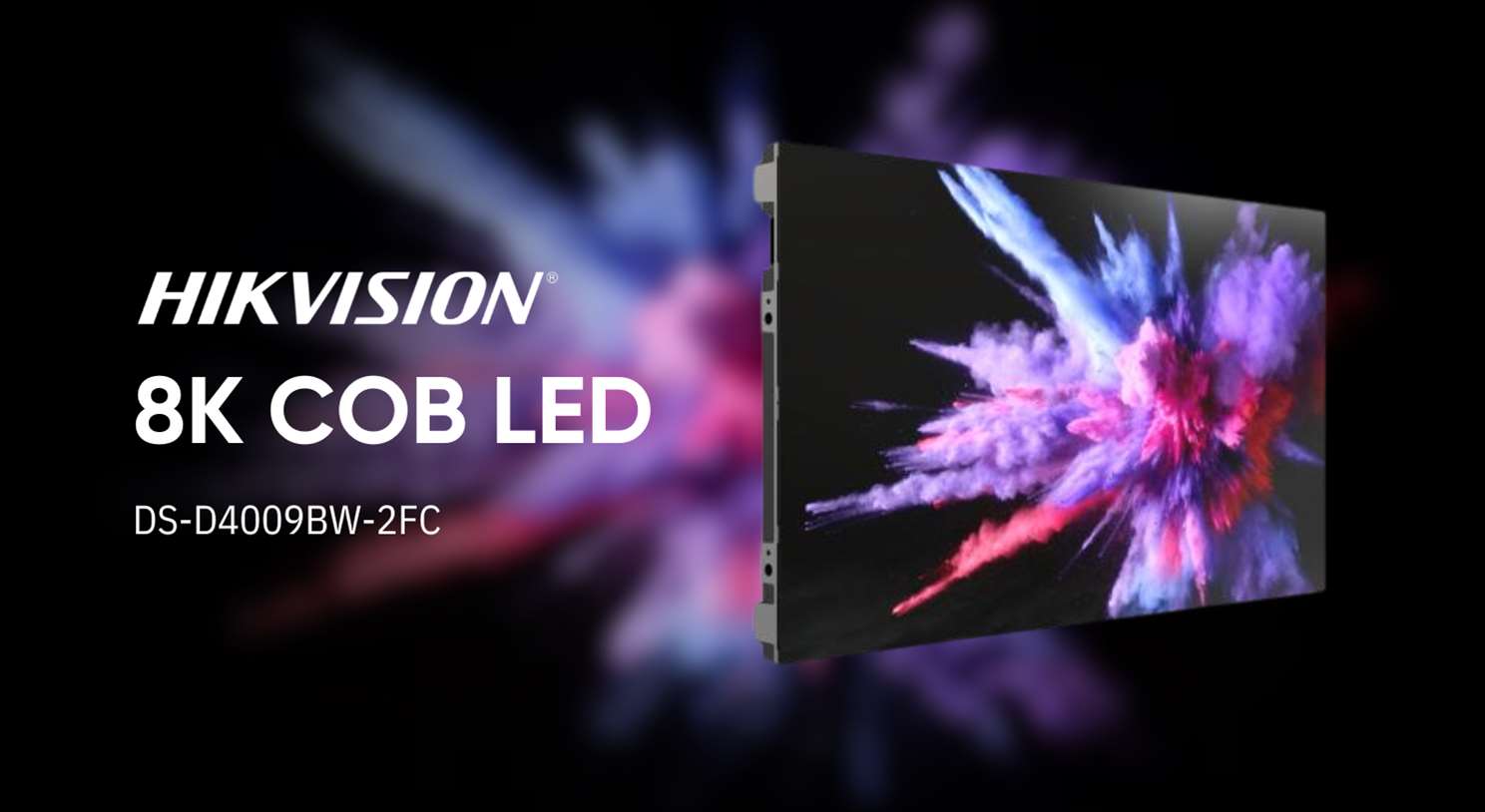

A New Era of Visual Excellence with Hikvision’s 8K COB LED

News / 19.02.25

In the rapidly evolving world of ultra-high definition displays, Hikvision's 8K COB (Chip-On-Board) LED technology stands out as a groundbreaking innovation, setting new standards in visual clarity, durability, and energy efficiency. Designed for a wide range of professional environments, from control rooms and broadcast studios to high-end digital signage, this state-of-the-art display technology promises an unparalleled visual experience that pushes the boundaries of what is possible with modern display solutions.


8K Ultra HD Resolution

The 8K COB LED display offers crystal-clear, immersive visuals, bringing every detail to life with exceptional sharpness and vibrancy. Whether you’re viewing intricate graphics or high-definition video, the image quality will exceed expectations, providing an experience that is truly second to none.


Chip-On-Board (COB) Technology

Hikvision’s use of COB technology results in a seamless and durable display with improved visual consistency. The integration of the chips directly onto the board ensures fewer gaps between pixels, leading to a smoother, more cohesive image quality.


Energy Efficiency & Sustainability

Optimised for performance, the 8K COB LED minimises power consumption without compromising on brightness or display quality. The result is a display that not only delivers stunning visuals but also offers a more eco-friendly solution, helping to reduce energy costs in the long run.


Advanced Display & Control System

The 8K COB LED display is paired with Hikvision’s self-developed display and control system, ensuring smooth, stable, and secure operation. This advanced system provides full control over display settings, making it easier to manage and monitor the display’s performance in various environments. The highly interesting cabinet design ensures a lightweight and streamlined setup, optimising both efficiency and usability for users.


Modular & Lightweight Construction

The cabinet of the LED is constructed with a high-precision aluminium die-casting frame, which guarantees both durability and ease of installation. The lightweight design ensures that the display is easy to transport, set up, and maintain, even in the most demanding professional settings.


Front-Side Maintenance

One of the key features of this display technology is its front-side maintenance system. All components, including the lamp board, power supply, and receiving card, can be easily disassembled from the front for hassle-free servicing, saving both time and effort during maintenance.


Lead-Free & Non-Toxic Materials

In line with Hikvision’s commitment to sustainability, the 8K COB LED is constructed using lead-free and non-toxic materials. The environmentally safe solder paste used in the manufacturing process ensures that the display is not only safe for users but also environmentally friendly.


Intelligent Brightness Adjustment

Thanks to dynamic engine algorithms, the display automatically adjusts its brightness based on the content being shown. This intelligent adjustment not only improves image quality but also helps conserve power by optimising brightness levels in real time.


Built-in Moisture Removal

To protect against water damage, the 8K COB LED features built-in moisture removal technology. This system is particularly useful when the display is stored in humid environments or left unused for extended periods, ensuring it remains in optimal working condition.


Multi-Platform Control

The display can be controlled remotely through various platforms, including tablets, remote controls, and software-based control systems. This multi-platform functionality provides flexibility and convenience for users, allowing them to adjust screen parameters effortlessly.


Technical Specifications

  • Pixel Pitch: 0.9375mm (P0.9)
  • Pixel Configuration: Flip-chip COB
  • Pixel Density: 1,127,777 dots/m2
  • Resolution: 640 x 360
  • Module Dimensions: 300mm x 168.75mm
  • Module Resolution: 320 x 160
  • White Balance Brightness: 600 cd/m2
  • Colour Temperature: Adjustable between 3000-10000K
  • Viewing Angle: 160(H)/160(V)
  • Contrast Ratio: 15,000:1
  • Brightness Uniformity: ≥ 97%
  • Driving Method: Constant current driving
  • Frame Frequency: 60 Hz
  • Refresh Rate: 3840 Hz
  • Grey Level: 16-bit


Power & Environment Efficiency

  • Max Power Consumption:  ≤ 360 W/m2 (600nits)
  • Average Power Consumption:  ≤ 120 W/m2
  • Input Voltage: 100~240 VAC ± 10%
  • Operating Temperature: -10℃ to 40℃ (14℉ to 104℉)
  • Operating Humidity: 10% to 90% RH (non-condensing)


General Specifications

  • Cabinet Material: Aluminum die-casting
  • Maintenance Method: Front maintenance for all components
  • Cabinet Dimensions: 600mm x 337.5mm x 29.3mm
  • Weight: 3.4 Kg
  • Packaging Dimensions: 722mm x 438mm x 193mm
  • Net Weight: 3.4 Kg


Why Choose Hikvision’s 8K COB LED?

Hikvision’s 8K COB LED display is tailored for professionals who demand high quality in visual performance, durability, and energy efficiency. Whether for monitoring in control rooms, broadcasting in studios, or engaging audiences with eye-catching digital signage, this display solution is designed to deliver exceptional results across various applications.
