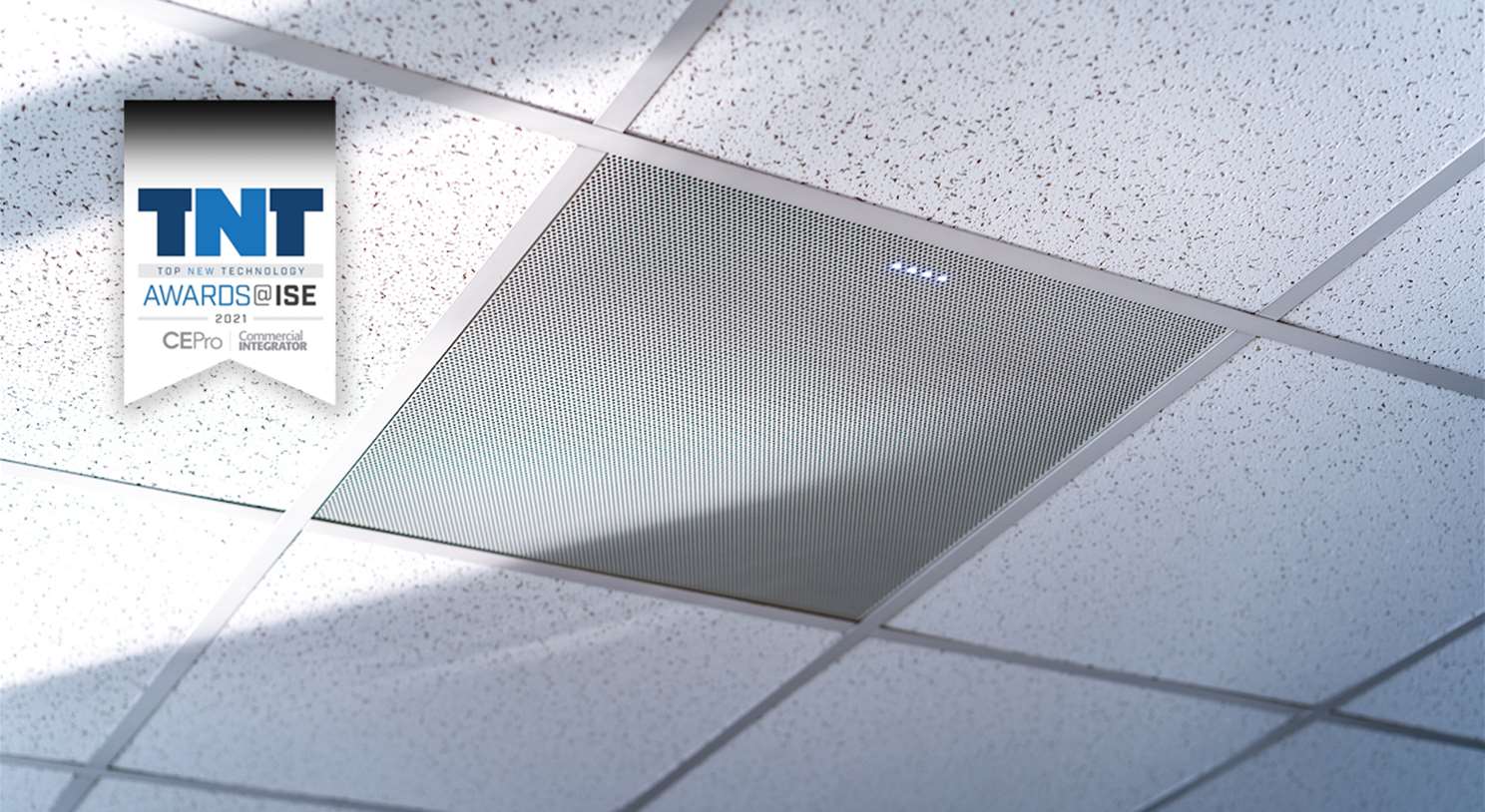

ClearOne BMA 360 Beamforming Microphone Array Ceiling Tile

News / 28.10.21

Winner of the 2021 Systems Contractor News (SCN) Installation Product Award for Most Innovative Hardware, the patented BMA 360 is the world’s most technologically advanced ceiling tile beamforming mic array, delivering unrivalled audio performance and deployment ease.

The world’s first truly wideband, frequency invariant beamforming mic array with uniform gain response across all frequency bands. FiBeam™ technology gives users the ultimate in natural and full fidelity audio across all beams and within a single beam.

Download Spec Sheet

Watch Video



BMA 360 Key Features

  • The patented BMA 360 is the world’s most technologically advanced ceiling tile beamforming mic array, delivering unrivalled audio performance and deployment ease.
  • Deep Sidelobe Beamforming, DsBeam™, provides unparalleled sidelobe depth, below -40 dB, resulting in superior rejection of reverb and noise in difficult spaces for superb clarity and intelligibility.
  • The BMA 360 Voice Lift feature provides a powerful and simple way to drive multiple mix-minus speaker zones allowing everyone in the local room to hear every word.
  • The combination of ClearOne’s beamforming and feedback cancellation technologies provide up to a 20 dB boost in gain before feedback compared to an omni mic.
  • Voice Lift is further enhanced with the patented DARE™ Feedback Eliminator, found on CONVERGE® Pro 2 DSP Mixers. This technology provides unsurpassed removal of feedback and ringing--giving an additional boost of up to 8 dB to the total system gain.
  • Voice Lift can be configured on up to three BMA 360s per CP2.
  • The BMA 360 can switch on as many as two beams at one time, which enables better pickup of local presenters that are speaking at the same time.
  • Built-in, robust power amplifiers, configurable as 4 x 15 Watt or 2 x 30 Watt, provide flexibility for driving loudspeakers.
  • Integrated features significantly reduce system design complexity, simplify installation, consume less rack space, and lower system cost.
  • Single workflow for configuration using CONSOLE® AI software. Competing products require practitioners to program multiple components using different toolsets: Ethernet switches, Ceiling Tiles, DSP mixers, and the Dante Controller.
  • Supports three different ceiling grid types: 24 in, 600 mm, and 625 mm. It incorporates a VESA-mount hole pattern that supports pole mounting. Hard-ceiling mount adapter kits are also available.
